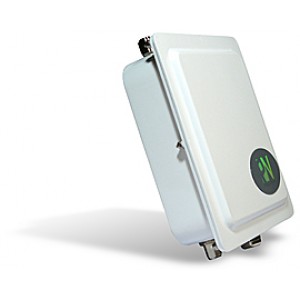

PheeNet AP-WCS (01N) - внешняя WiFi точка доступа с поддержкой функции MESH (1 радиомодуль)

Основные функции  PheeNet AP-WCS (01N)

Low Latency and High throughput over Multiple Wireless hops

•  Dynamic Expansion Wireless Hot Zones
•  Reliable performance when deploying multiple nodes in bridged or routed environments
•  Bandwidth control module at subscriber level
•  IEEE802.1q Tag VLAN
•  IEEE802.1p VLAN Priority Based QoS

Bridge

•  Layer 2 Switching Learning Technology
•  Store and Forward
•  DHCP Server / Client
•  Multicast / Broadcast Storm Limitation
•  IEEE802.1q Tag VLAN
•  IEEE802.1p VLAN Priority Based QoS
•  Q-in-Q VLAN

Router Mode

•  TCP/IP (IPv4)
•  Static Route / Dynamic Route
•  RIP (Routing Information Protocol) V1 & V2
•  DHCP Server / Client
•  NAT (Network Address Translation)

Comprehensive Security Features

•  IEEE802.1x EAP-MD5 / EAP-TLS / EAP-TTLS
•  WPA / WPA2 PSK / EAP with TKIP / CCMP AES based Encryption
•  Proprietary security algorithm for Mesh / Mobility
•  64/128/152 bits Dynamic WEP keys
•  Hide ESSID
•  MAC address filtering
•  NAT


Dynamic WAN Interface Configuration

• Flexible assignments of any wired or wireless interfaces as WAN links to adapt to different network topologies
•  Bandwidth aggregation by logically combining multiple RF links to achieve super trunk mode for high bandwidth deployments
•  Smart traffic load balancing across multiple RF links
•  Configurable Transmit-only and Receive-only mode per RF interface
•  Flexible wireless network distribution system

Advanced Features

•  Wireless Bandwidth Limitation
•  Intelligent Wireless Traffic Control
•  Intelligent Abnormal Reports
•  Against Co-band Interference
•  Proprietary TDD-like duplexing schema

Harsh outdoor environment to keep operation

•  Certified IP68 sturdy water-tight housing
•  Built-in automatic thermal sensor and regulator module to facilitate deployment in cold regions

System Management

•  HTTP(s) WEB GUI
•  Telnet
•  SSH
•  Console(optional interface)
•  CLI commands
•  SNMP v1 / v2, standard / private MIBs
•  Syslog
•  Layer 2 iCloud Management Utility
•  Management VLAN Tag
•  NTP Client
•  Firmware upgrade / downgrade via FTP / WEB / SNMP / Layer 2 / Batch process
•  Dual Images
•  Dual Configuration files / Factory Default
•  Ping Watchdog
•  Multiple Level Management

Simple Installation and Deployment

• Software Alignment / Deployment Tools
• Access Points Site Survey
